- Product Name: Breakout Box for RED KOMODO
- Item NO.: 2907751
- Weight: 1 kg = 2.2046 lb = 35.2740 oz
- Category: Accessory > Breakout Box
- Brand: vaxis
- Creation Time: 2021-09-02

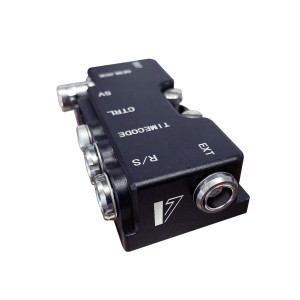

- B-Box (RED KOMODO) is connected to the BP-9 battery slot on the right side of the camera and provides a breakout cable for the EXT connector of the camera. Battery Slide Pro V-Mount or Gold Mount for RED KMODO can be used at the same time. Customized right-angle 360-degree rotating elbow connectors allow neat cable operation. When using the B-Box, the Canon BP-9 battery can also be installed in the slot on the left side of the camera, or fixed on the device with a 1/4 screw.
AVAILABLE PORTS INCLUDE:
-R/S (3PIN FISCHER)
Simple runop of the handle trigger box, simple 3-pin Fischer trigger cable, etc.
No power availableDevices like ARRI WCU-4 may require a CTRL port interface with cable K2.0015758
pin1:GND, pin2:N/C, pin3:GPI-TIME CODE (0B 5PIN)
Standard wiring of time code input/output
pin1:GND, pin2:LTC-IN, pin3:N/C, pin4:N/C, pin5:LTC-OUT
-CTRL (00B 4PIN)
RED CTRL standard wiring
pin1:GND, pin2:UART-RX, pin3:GPO, pin4:UART-TX
-5V (USB)
5V available, maximum 500mA
May need to enable power in the camera menu
-GENLOCK (BNC)
Standard wiring for genlock
Center: signal, shell: GND
EXT input/output, one EXT 0B9 pin output is reserved to ensure that the original cable can continue to be used.
